Infusion
EGL IN Infusion Pump
Volumetric infusion pump for fluids and medication, compatible with most standard IV sets, with an anti-bolus system and automatic stop on critical alarms.
0.1–1800 mL/hflow rate
±5%accuracy
6 hbattery operation
Features
Three steps to start
Set the parameters with the dial, confirm with the push button and start therapy with the start button.
For all patients
Adjustable air-in-line sensitivity, and detection of upstream occlusion.

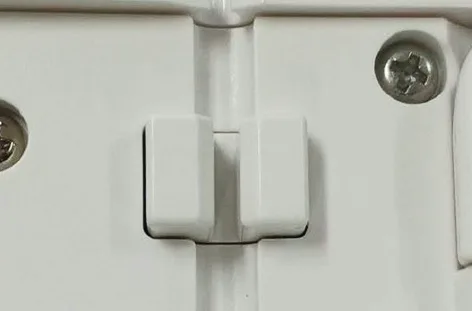

QuikMount
Installs on the pump pole in one click, with no screws.
External power adapter
An external power supply reduces the risk of the power module overheating.
Data over Wi-Fi
Download settings and upload therapy data over Wi-Fi.
Compact
1.5 kg; 132 × 95 × 165 mm (W × D × H); works over 6 hours on battery.
Specifications
As published by the manufacturer. Confirm against the registered labelling before tender submission.
| Delivery | |
|---|---|
| Flow rate | 0.1–1800 mL/h, in 0.1 mL/h steps |
| Volume to be infused | 0.1–9999.9 mL, in 0.1 mL steps |
| Accuracy | ±5% |
| Purge / bolus rate | 1–1800 mL/h adjustable, ±20% |
| KVO rate | 3 mL/h at flow rates above 10 mL/h; 1 mL/h at 1–10 mL/h; equal to the flow rate below 1 mL/h |
| IV sets | Most standard IV sets, with user calibration |
| Safety | |
| Alarms | Air in line, occlusion, door open, infusion near end, VTBI complete, pause overtime, low battery, battery exhausted, malfunction, AC and DC off |
| Air-in-line sensitivity | Adjustable |
| Upstream occlusion | Detected |
| Occlusion pressure | High 100 ± 30 kPa; low 50 ± 20 kPa |
| Anti-bolus | A.B.S anti-bolus system |
| Critical alarms | Infusion stops automatically |
| Display and connectivity | |
| Display | 3.5" TFT-LCD |
| Operation | Keypad |
| USB | Firmware updates and calibration |
| Wi-Fi | Download settings and upload therapy data |
| Mounting | QuikMount: one-click pole installation, no screws |
| Power and physical | |
| Power adapter | Input 100–240 V AC, 50/60 Hz; output 15 V DC, 2 A |
| Battery | Lithium, 10.8 V nominal; over 6 hours of operation |
| Power consumption | Under 55 VA |
| Classification | Class II, Type CF, IPX2 |
| Dimensions | 132 × 95 × 165 mm (W × D × H) |
| Weight | 1.5 kg |
Source: hildmedical.com and the manufacturer's EGL IN Infusion Pump brochure, October 2026.
Consumables and accessories
Available from CraftEdge. The manufacturer’s instructions for use specify the parts for each device.
Unit configurations
Documents
- EGL IN Infusion Pump brochure
BrochureAvailable
