Patient monitoring

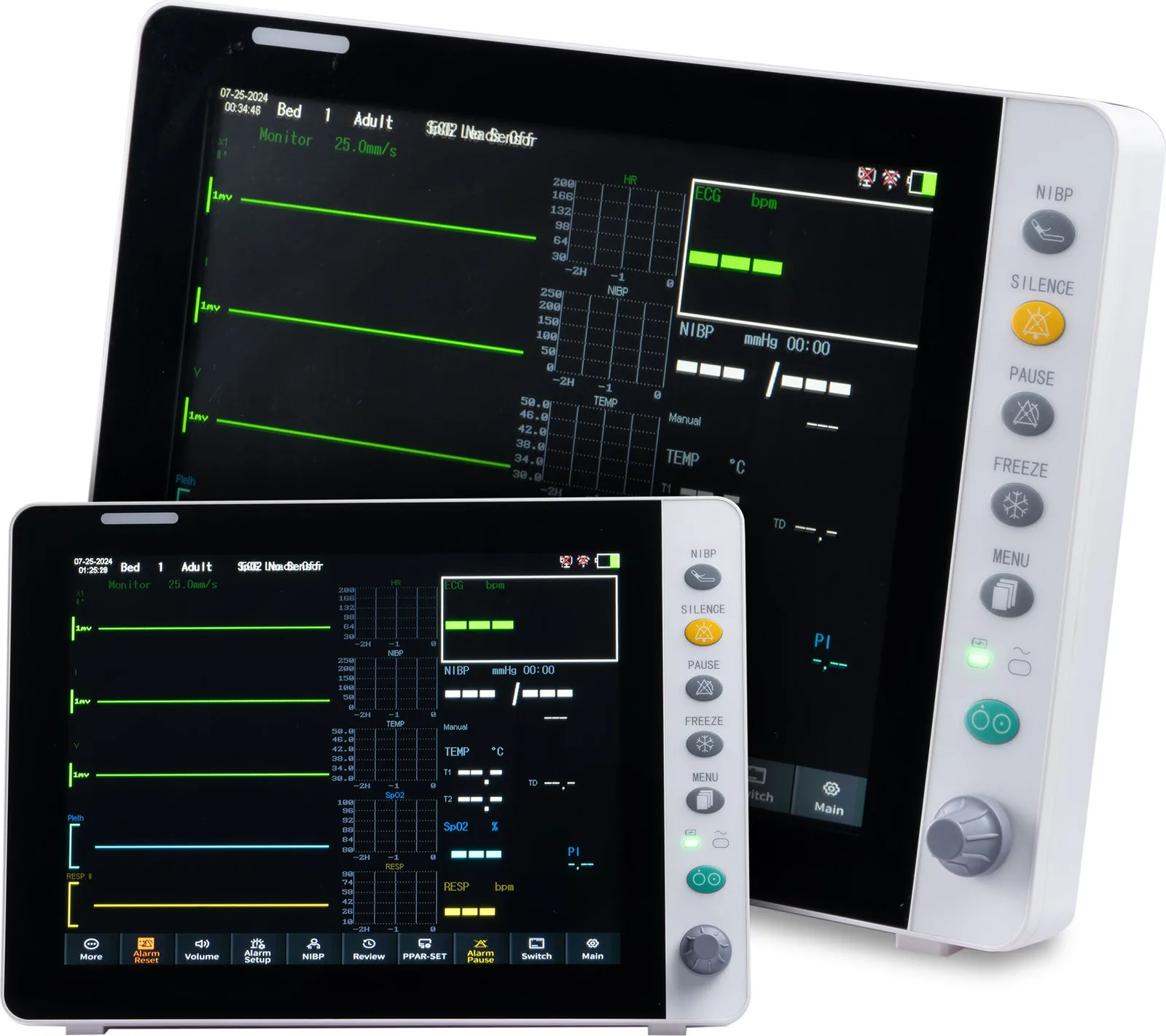

Multi-Parameter Monitor
Model EGL MP 121, EGL MP 151
Bedside monitoring of ECG, SpO₂, NIBP, temperature and respiration, in 12-inch (EGL MP 121) and 15-inch (EGL MP 151) models.
12" / 15"screen, two models
3- or 5-leadECG
10–270 mmHgNIBP, ±5 mmHg
Features
High-brightness display
12.1 or 15 inch high-brightness, long-life LED display, with an optional touch screen.

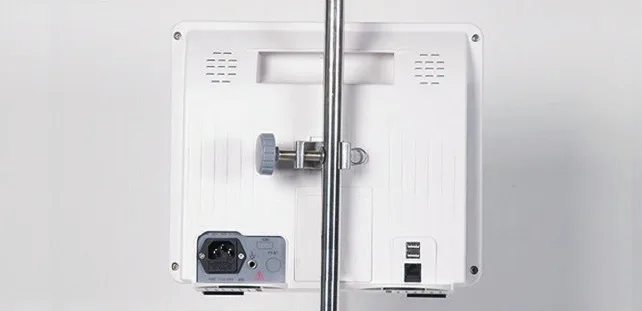

Quick-hook mounting
Lightweight, with a quick-hook design that fixes to poles less than 30 mm in diameter.
Simple operation
Icon keys and a centralised menu; one-key switching and an indented key menu leave more of the screen for data.
Flexible extensions
Optional IBP, EtCO₂, Nellcor or Masimo SpO₂, SunTech NIBP, recorder, touch, HDMI, Wi-Fi, central station software, scanning gun, card reader and information input module.
Specifications
As published by the manufacturer. Confirm against the registered labelling before tender submission.
| Models | |
|---|---|
| Model | EGL MP 121, EGL MP 151 |
| Screen | 12-inch, 15-inch |
| Parameters | |
| ECG | Standard three- or five-lead cable |
| Heart rate | Adult 15–300 bpm; paediatric 15–350 bpm |
| Respiration | Adult 2–120 br/min; paediatric 2–150 br/min; accuracy ±2 br/min |
| Temperature | 0–50 °C; accuracy ±0.1 °C |
| Pulse rate | 20–300 bpm; accuracy ±3 bpm |
| SpO₂ | 0–100%; accuracy ±2 at 70–100% |
| NIBP | Manual, automatic, STAT; 10–270 mmHg; accuracy ±5 mmHg |
| Alarms and operation | |
| Alarms | Audio-visual, set per parameter |
| Operation | Keys with a centralised menu; touch screen optional |
| Display | High-brightness, long-life LED |
| Mounting | Quick-hook for poles under 30 mm diameter |
| Power and connectivity | |

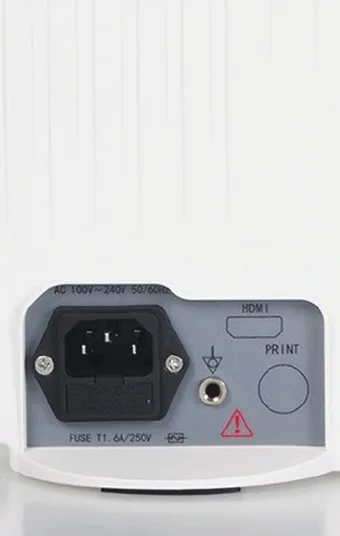

| Power | AC power connector; rechargeable battery |

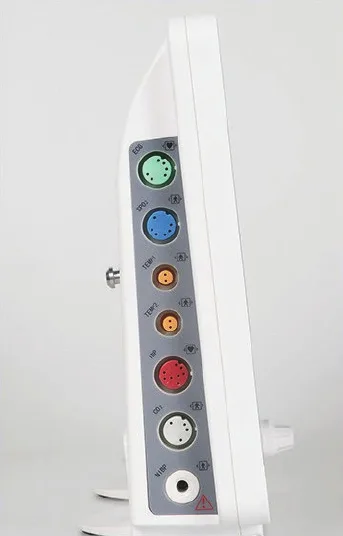

| Interfaces | USB, RJ45, HDMI |
| Data | USB, Wi-Fi and cloud integration for data storage and remote access |

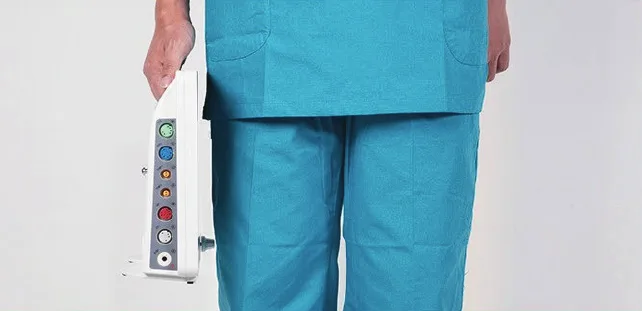

| Build | Portable |
| Configuration | |
| Standard | One each: ECG cable, ECG electrode, NIBP cuff, NIBP tube, SpO₂ probe, temperature probe |
| Optional | IBP, EtCO₂, Nellcor or Masimo SpO₂, SunTech NIBP, recorder, touch, HDMI, Wi-Fi, central station software, scanning gun, card reader, information input module |
Source: hildmedical.com and the manufacturer's EGL MP 121/151 Multi-Parameter Monitor brochure, October 2026.
Accessories
Optional accessories listed by the manufacturer. Part numbers are confirmed on quotation.
Consumables and accessories

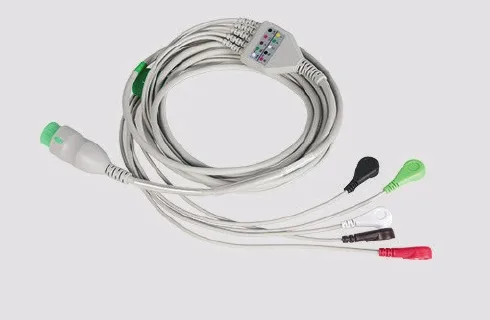

- ECG cables and electrodes

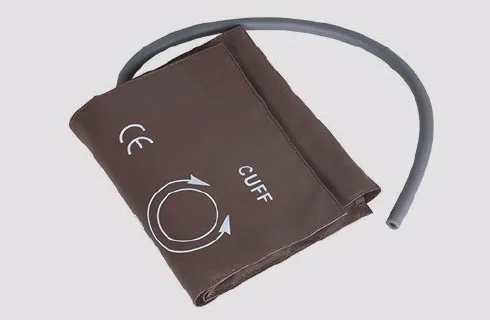

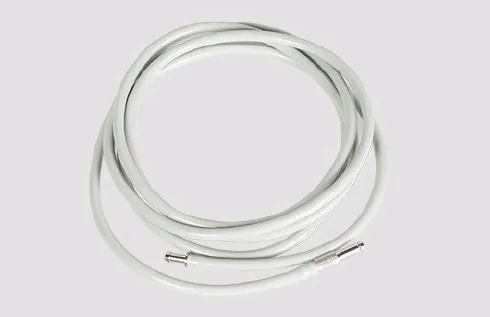

- NIBP cuffs and tubes

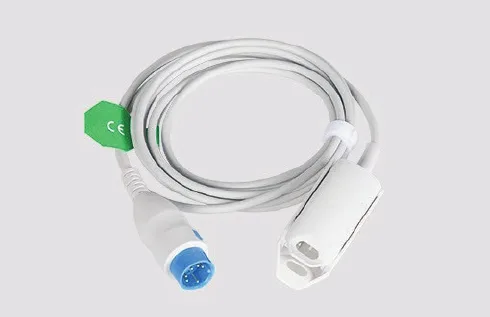

- SpO₂ probes

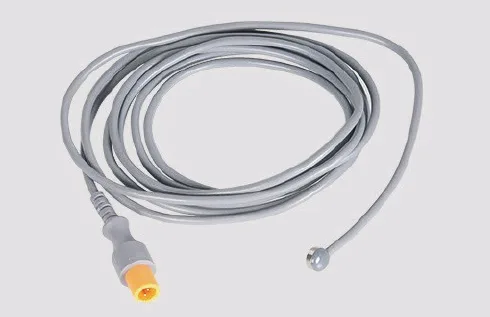

- Temperature probes

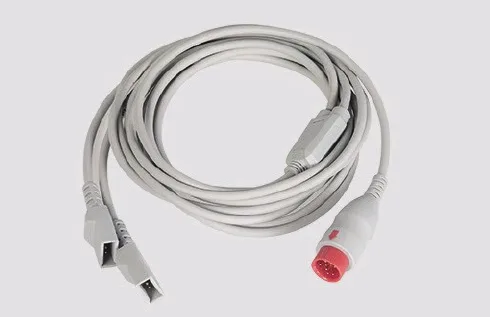

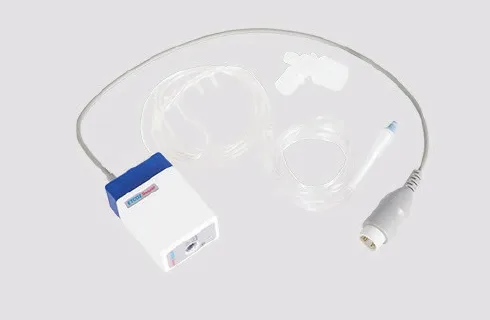

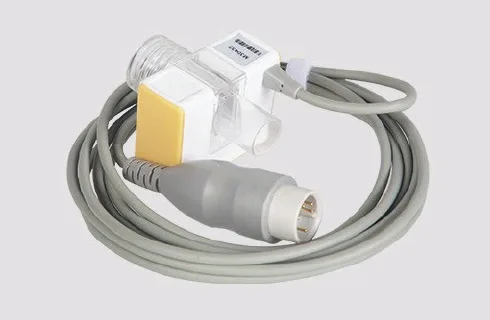

- IBP and EtCO₂ accessories (optional)
Available from CraftEdge. The manufacturer’s instructions for use specify the parts for each device.
Unit configurations
Documents
- EGL MP 121/151 Multi-Parameter Monitor brochure
BrochureAvailable
